Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5414

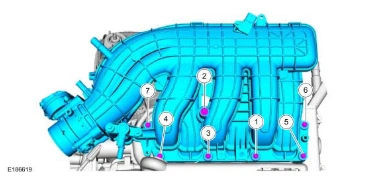

Install the upper intake manifold and the bolts.

Torque:

Stage 1: 89 lb.in (10 Nm)

Stage 2: 45°

Engine — original illustration 1, reference 5414Original colors & callouts · Select to enlarge

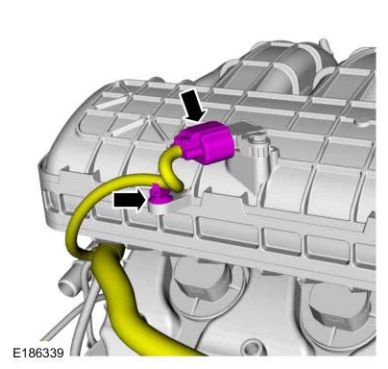

135. Connect the MAPT sensor electrical connector and the wiring harness retainer.

Engine — original illustration 2, reference 5414Original colors & callouts · Select to enlarge

136. Connect the throttle body electrical connector and the wiring harness retainer.
