Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5417

141. Install the CKP sensor and the bolt.

Torque

: 89 lb.in (10 Nm)

Connect the CKP sensor electrical connector.

Engine — original illustration 1, reference 5417Original colors & callouts · Select to enlarge

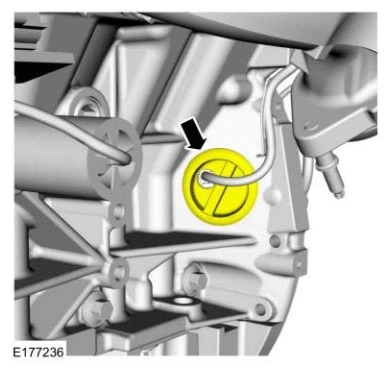

142. Install the wiring harness grommet.

Engine — original illustration 2, reference 5417Original colors & callouts · Select to enlarge

143. Install the wiring harness retainer stud bolt.

Torque

: 89 lb.in (10 Nm)
