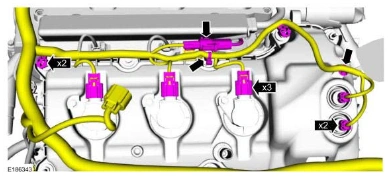

130. Attach the wiring harness retainers.

Connect the CHT sensor electrical connector.

Connect the ignition coil-on-plug electrical connectors.

Connect the VCT oil control solenoids electrical connectors.

Engine — original illustration 1, reference 5412Original colors & callouts · Select to enlarge

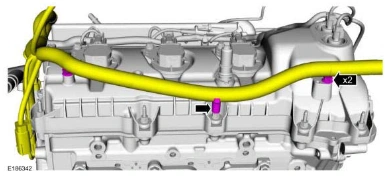

131. Attach the wiring harness retainers.

Engine — original illustration 2, reference 5412Original colors & callouts · Select to enlarge

132. Install the fuel rail sound insulators.
