Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5410

Material

: Motorcraft® Silicone Gasket Remover / ZC-30-A

Material

: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Engine — original illustration 1, reference 5410Original colors & callouts · Select to enlarge

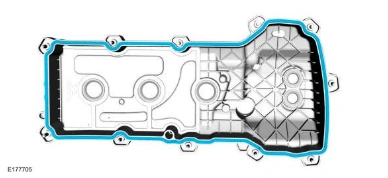

125. Install a new valve cover gasket.

Engine — original illustration 2, reference 5410Original colors & callouts · Select to enlarge

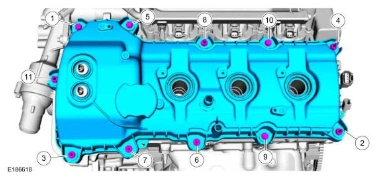

126. Install the valve cover and tighten the bolts.

Torque

: 89 lb.in (10 Nm)

Engine — original illustration 3, reference 5410Original colors & callouts · Select to enlarge

127. Make sure the VCT seals in the valve cover are below the top of the VCT oil control solenoid
