Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5408

120. Make sure the VCT seals in the valve cover are below the top of the VCT oil control solenoid electrical connector or the VCT seal may leak oil.

Engine — original illustration 1, reference 5408Original colors & callouts · Select to enlarge

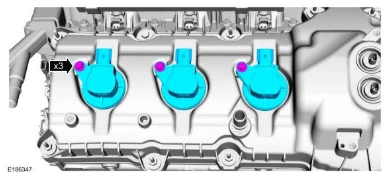

121. Install the RH coil-on-plugs and the bolts.

Torque

: 62 lb.in (7 Nm)

Engine — original illustration 2, reference 5408Original colors & callouts · Select to enlarge

NOTE: Installation of new seals is only required if damaged seals were removed.

122. If removed, using the special tools, install the spark plug tube seals.

Use Special Service Tool: 303-1247 VCT Spark Plug Tube Seal Remover and Installer, 205-153 (T80T-4000-W) Handle.
