Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5424

Engine — original illustration 1, reference 5424Original colors & callouts · Select to enlarge

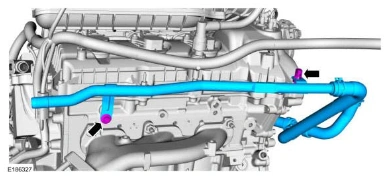

156. Position the coolant hose and install clamp.

Use the General Equipment: Hose Clamp Remover/Installer

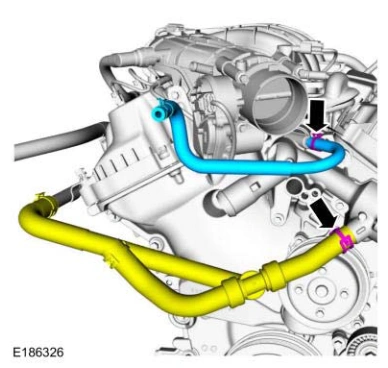

Install the coolant return hose and the clamp.

Use the General Equipment: Hose Clamp Remover/Installer

Engine — original illustration 2, reference 5424Original colors & callouts · Select to enlarge

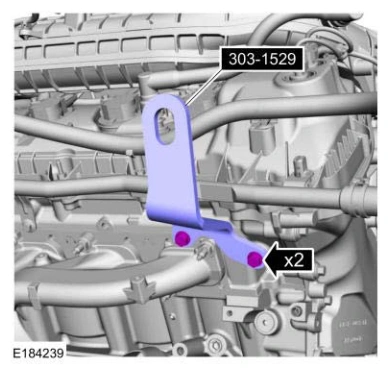

157. Install Special Service Tool: 303-1529 Lift Eye, Engine.

Engine — original illustration 3, reference 5424Original colors & callouts · Select to enlarge

158.
