Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5404

Engine — original illustration 1, reference 5404Original colors & callouts · Select to enlarge

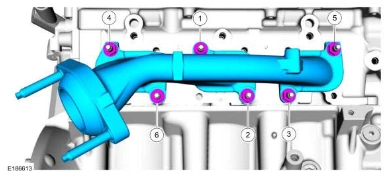

110. Install the exhaust manifold and the new nuts.

Torque:

Stage 1: 168 lb.in (19 Nm)

Stage 2: 18 lb.ft (25 Nm)

Engine — original illustration 2, reference 5404Original colors & callouts · Select to enlarge

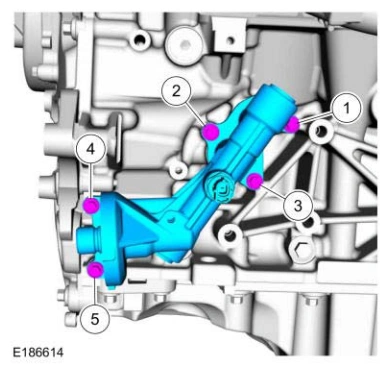

111. Install the oil filter adapter and the bolts.

Torque:

Stage 1: 89 lb.in (10 Nm)

Stage 2: 45°

Engine — original illustration 3, reference 5404Original colors & callouts · Select to enlarge

112.
