Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5394

Engine — original illustration 1, reference 5394Original colors & callouts · Select to enlarge

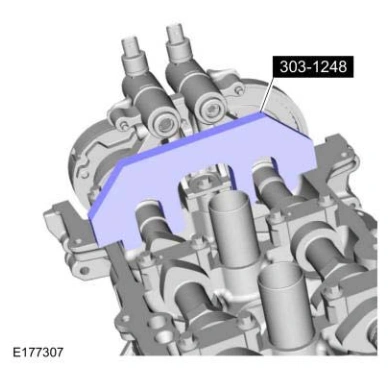

91. Remove Special Service Tool: 303-1248 Camshaft holding tools.

Engine — original illustration 2, reference 5394Original colors & callouts · Select to enlarge

92. Install the LH oil tube and the bolts.

Torque:

Stage 1: 71 lb.in (8 Nm)

Stage 2: 45°
