NOTE: Do not use excessive force when installing the VCT oil control solenoid. Damage to the mega cap could cause the cylinder head to be inoperable. If difficult to install the VCT oil control solenoid, inspect the bore and VCT oil control solenoid to ensure there are no burrs, sharp edges or contaminants present on the mating surface. Only clean the external surfaces as necessary.

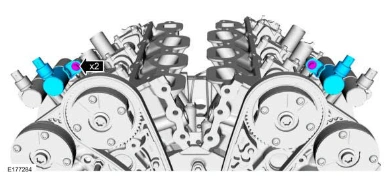

88. Install the VCT oil control solenoids and the bolts.
Torque:
Stage 1: 71 lb.in (8 Nm)
Stage 2: 20°

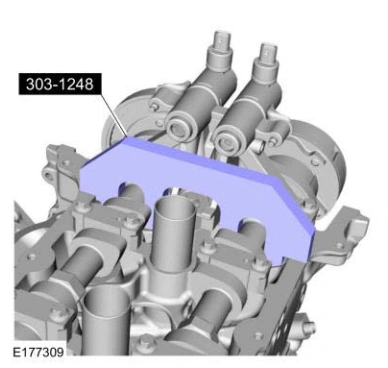

89. Remove Special Service Tool: 303-1248 Camshaft holding tools.
90. Install the RH oil tube and the bolts.
Torque:
Stage 1: 71 lb.in (8 Nm)
Stage 2: 45°
