Engine

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,391HTML edition
← Chapter contentsManual collection

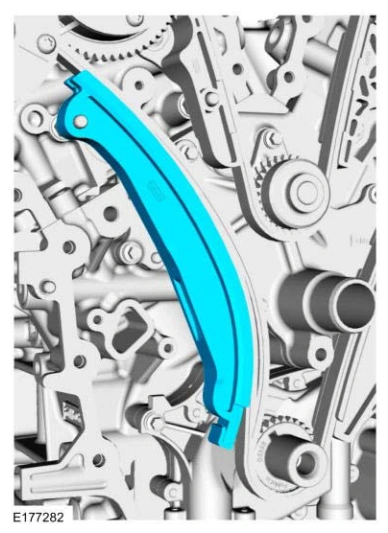

Engine — original illustration 1, reference 5391Original colors & callouts · Select to enlarge

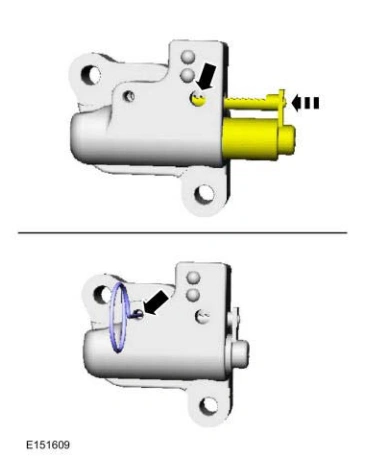

85. Release the ratchet detent.

Using a soft-jawed vise, compress the ratchet plunger.

Align the hole in the ratchet plunger with the hole in the tensioner housing.

Install a lockpin.

Engine — original illustration 2, reference 5391Original colors & callouts · Select to enlarge

NOTE: It may be necessary to rotate the camshafts slightly to remove slack from

Ford_Mustang_all_2015-2017.pdf · source reference 5391
