Engine

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,389HTML edition
← Chapter contentsManual collection

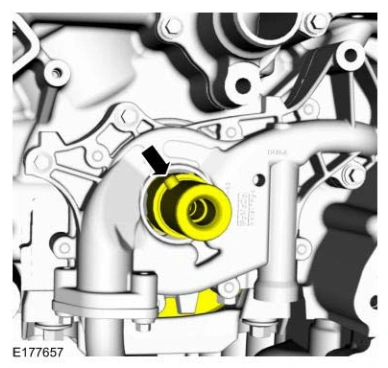

Engine — original illustration 1, reference 5389Original colors & callouts · Select to enlarge

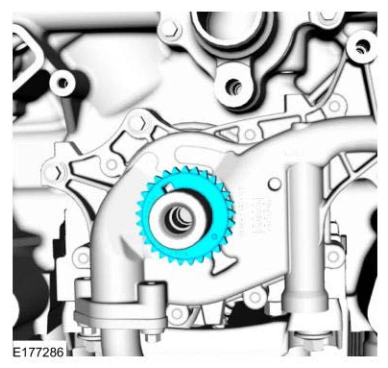

81. Install the crankshaft sprocket.

Engine — original illustration 2, reference 5389Original colors & callouts · Select to enlarge

NOTE: It may be necessary to rotate the camshafts slightly, to align the timing marks.

82. Install the timing chain with the colored links aligned with the timing marks on the VCT units and the crankshaft sprocket.
