Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5384

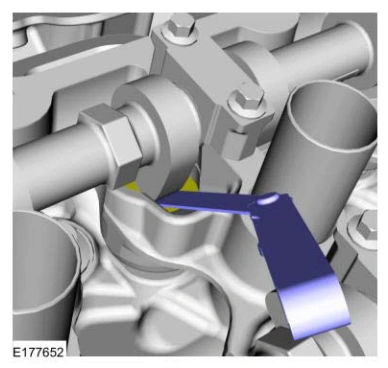

correct size. Refer to: Valve Clearance Adjustment .

Use the General Equipment: Feeler Gauge

Engine — original illustration 1, reference 5384Original colors & callouts · Select to enlarge

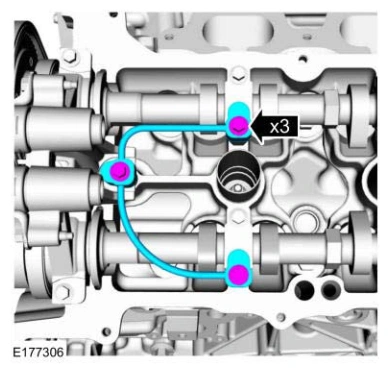

71. Remove bolts and the oil tube.

Engine — original illustration 2, reference 5384Original colors & callouts · Select to enlarge

72. Rotate the LH camshafts to TDC.
