Piston — Assembly

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,343HTML edition
← Chapter contentsManual collection

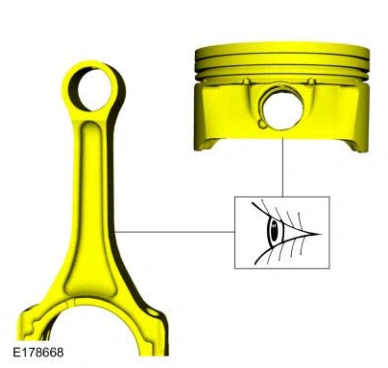

Piston — original illustration 1, reference 5343Original colors & callouts · Select to enlarge

DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES > PISTON > ASSEMBLY

1. If the piston and/or connecting rod are being installed new, the piston rod orientation marks and the arrow on the top of the dome of the piston should be facing toward the front of the engine block.

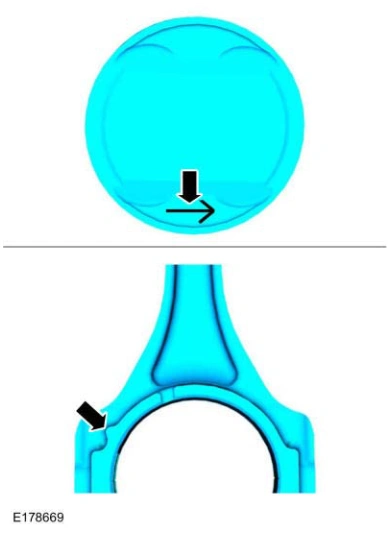

Piston — original illustration 2, reference 5343Original colors & callouts · Select to enlarge

2. Install the piston to the connecting rod.
