Piston — Disassembly

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,342HTML edition
← Chapter contentsManual collection

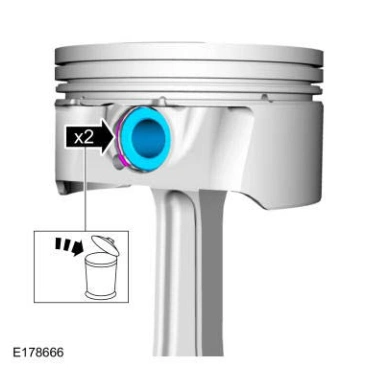

Piston — original illustration 1, reference 5342Original colors & callouts · Select to enlarge

NOTE: If the piston and connecting rod are to be reinstalled, they must be assembled in the same orientation. Mark the piston orientation to the connecting rod for reassembly.

3. Remove the piston from the connecting rod.

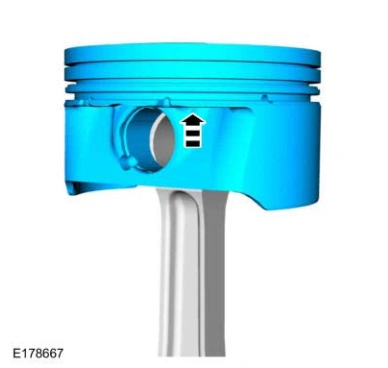

Piston — original illustration 2, reference 5342Original colors & callouts · Select to enlarge

4. Inspect the piston and connecting rod. Refer to: Piston Inspection .
