Assembly — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5340

Install the exhaust manifold and the new nuts.

Torque:

Stage 1: 168 lb.in (19 Nm)

Stage 2: 18 lb.ft (25 Nm)

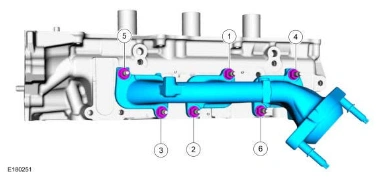

Assembly — original illustration 1, reference 5340Original colors & callouts · Select to enlarge

13. Install the exhaust manifold heat shield and the bolts.

Torque

: 106 lb.in (12 Nm)

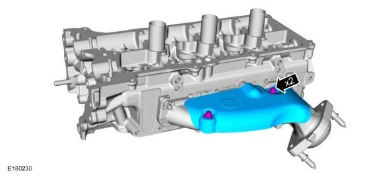

Assembly — original illustration 2, reference 5340Original colors & callouts · Select to enlarge

14. Install ground strap and the bolt.

Torque

: 106 lb.in (12 Nm)

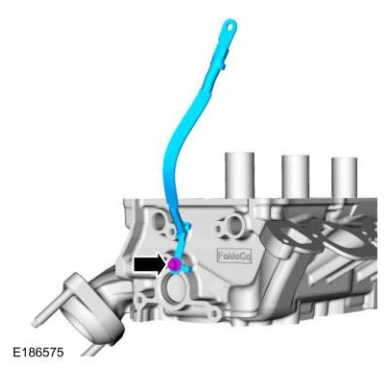

Assembly — original illustration 3, reference 5340Original colors & callouts · Select to enlarge
