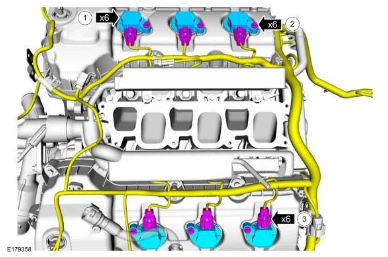

Spark Plugs — original illustration 1, reference 7375Original colors & callouts · Select to enlarge

RH Side

3. Install the upper intake manifold. Refer to: UPPER INTAKE MANIFOLD .

REMOVAL AND INSTALLATION > SPARK PLUGS > REMOVAL

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the ignition coil-on-plugs. Refer to: Ignition Coil-On-Plug .

NOTE: Use compressed air to remove any foreign material in the spark plug well before removing the spark plugs.

NOTE: If a spark plug is dropped, internal damage may result and the spark plug must be discarded. The use of a damaged spark plug may cause cylinder misfire resulting in engine damage.

NOTE: Do not remove the spark plugs when the engine is hot or cold soaked. Spark plug thread or cylinder head damage can occur. Make sure the engine is warm (hand touch after cooling down) prior to spark plug removal.

2. Remove the spark plugs.

Torque

: 133 lb.in (15 Nm)
