Engine Ignition - System Operation And Component Description — Component Description

Engine Ignition - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 7,372HTML edition
← Chapter contentsManual collection

Ford Mustang

Service Manual: ENGINE IGNITION - 3.7L DURATEC (227KW/301PS)

SPECIFICATIONS > SPECIFICATIONS

Item

Specification

Spark plug

12405

Spark plug gap

0.049-0.053in (1.25-1.35mm)

DESCRIPTION AND OPERATION > ENGINE IGNITION - COMPONENT LOCATION >

3.7L DURATEC (227KW/301PS)

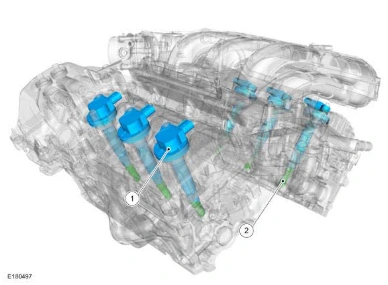

Engine Ignition - Component Location — original illustration 1, reference 7372Original colors & callouts · Select to enlarge

Item

Description

1

Ignition coil-on-plug(s)

2

Spark plug(s)

DESCRIPTION AND OPERATION > ENGINE IGNITION - SYSTEM OPERATION AND

COMPONENT DESCRIPTION > SYSTEM OPERATION

For System Operation, Refer to ENGINE CONTROLS - DESCRIPTION & OPERATION (EXCEPT DIESEL & HYBRID) . .

DESCRIPTION AND OPERATION > ENGINE IGNITION - SYSTEM OPERATION AND

COMPONENT DESCRIPTION > COMPONENT DESCRIPTION

For Component Description, Refer to ENGINE CONTROLS - DESCRIPTION & OPERATION (EXCEPT DIESEL & HYBRID) . .
