Ignition Coil-On-Plug — Installation

Engine Ignition - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 7,374HTML edition
← Chapter contentsManual collection

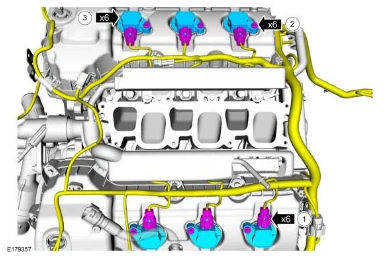

Ignition Coil-On-Plug — original illustration 1, reference 7374Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > IGNITION COIL-ON-PLUG > INSTALLATION

Both sides

1. Inspect the ignition coil-on-plugs and replace any ignition coil-on-plug rubber boots with cracks, rips or tears.

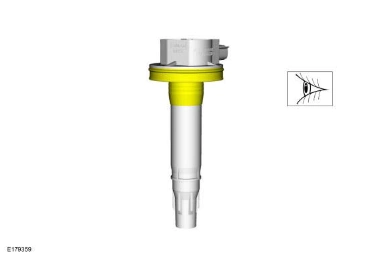

Ignition Coil-On-Plug — original illustration 2, reference 7374Original colors & callouts · Select to enlarge

2.

1. Install the ignition coil-on-plugs.

2. Install the ignition coil-on-plug mounting bolts.

Torque

Stage 1: 62 lb.in (7 Nm)

Stage 2: 50°

3. Connect the ignition coil-on-plug electrical connectors.

Ford_Mustang_all_2015-2017.pdf · source reference 7374
