Disassembly

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,333HTML edition
← Chapter contentsManual collection
Disassembly — original illustration 1, reference 5333Original colors & callouts · Select to enlarge

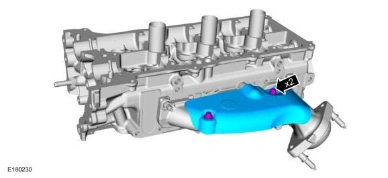

3. Remove the nuts and the exhaust manifold.

Discard the nuts.

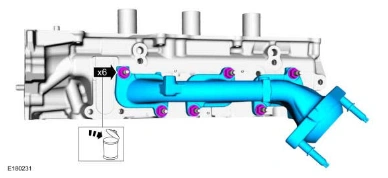

Disassembly — original illustration 2, reference 5333Original colors & callouts · Select to enlarge

4. Clean and inspect the exhaust manifold. Refer to: Exhaust Manifold Cleaning and Inspection .

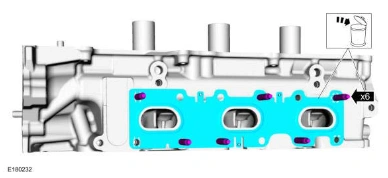

5. Remove and discard the studs and the exhaust manifold gasket.

Disassembly — original illustration 3, reference 5333Original colors & callouts · Select to enlarge

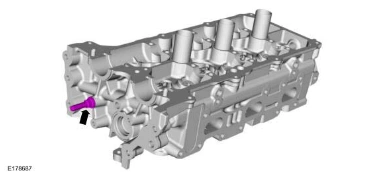

6. Remove the timing chain guide pin.

Disassembly — original illustration 4, reference 5333Original colors & callouts · Select to enlarge

RH cylinder head

7.
