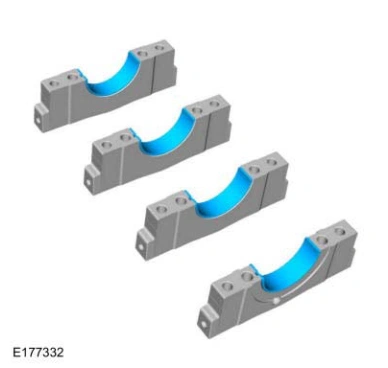

Engine — original illustration 1, reference 5329Original colors & callouts · Select to enlarge

NOTE: Note the position of the 2 thrust washers on the inside and outside of the rear main bearing bulkhead.

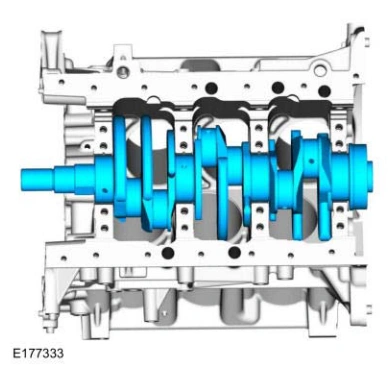

137. Remove the crankshaft.

Engine — original illustration 2, reference 5329Original colors & callouts · Select to enlarge

138. Remove the crankshaft thrust bearings from the rear main bearing bulkhead.
