Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,327HTML edition
← Chapter contentsManual collection

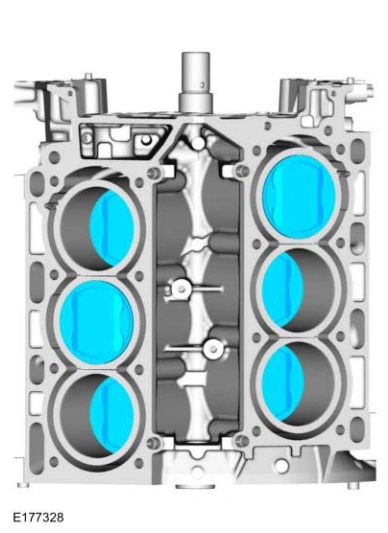

Engine — original illustration 1, reference 5327Original colors & callouts · Select to enlarge

132. Inspect the pistons. Refer to: Piston Inspection .

NOTE: Clearly mark the position and orientation of the main bearing caps for reassembly.

133. Remove and discard the main bearing caps bolts in the sequence shown in illustration.

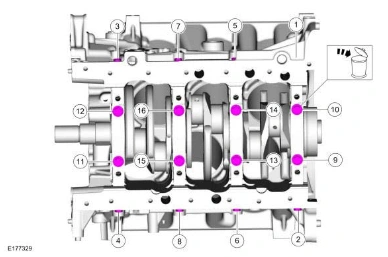

Engine — original illustration 2, reference 5327Original colors & callouts · Select to enlarge

NOTE: If the main bearings are being reused, mark them for correct position and orientation for reassembly.

NOTE: Note the position of the thrust washer on the outside of the No. 4 rear main bearing cap.
