Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5325

Material

: Metal Brake Parts Cleaner (U.S.) / PM-4-A, PM-4-B (U.S.)

Material

: Motorcraft® Metal Surface Prep / ZC-31-B

Engine — original illustration 1, reference 5325Original colors & callouts · Select to enlarge

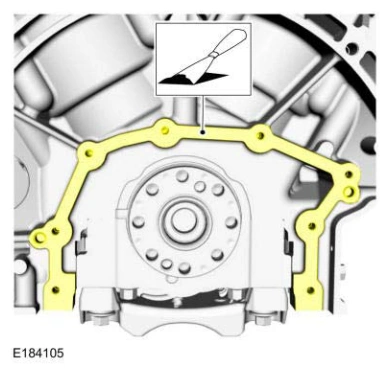

128. Inspect and clean the specified component with a abrasive pad.

Engine — original illustration 2, reference 5325Original colors & callouts · Select to enlarge

129. Remove and discard the bolts in the sequence shown in illustration.

Remove the main bearing cap support brace.
