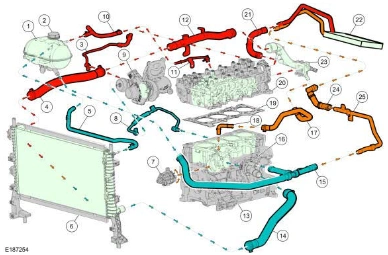

Item | Description |
1 | Degas bottle |
2 | Pressure relief cap |
3 | Turbocharger outlet tube |
4 | Upper radiator hose |
5 | Radiator-to-degas bottle hose |
6 | Radiator |
7 | Coolant pump |
8 | Turbocharger inlet tube |
9 | Turbocharger |
10 | Engine vent hose |
11 | Coolant outlet tube |
12 | Coolant outlet connector |
13 | Engine block |
14 | Lower radiator hose |
15 | Coolant return hose |
16 | Thermostat housing |
17 | Coolant bypass hose |
18 | Coolant bypass connector |
19 | Cylinder head gasket |
20 | Cylinder head |
21 | Heater core inlet hose |
22 | Heater core |
