NOTE: Do not pressurize the cooling system beyond the maximum pressure listed in the SPECIFICATIONS , or cooling system components can be damaged.
NOTE: If the plunger of the pressure tester is pressed too fast, an erroneous pressure reading will result.

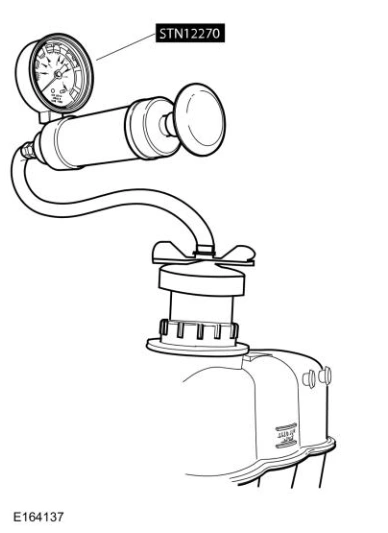

6. To pressurize the engine cooling system, slowly press the plunger of the pressure test pump and increase the pressure to between 124 - 138 kPa (18 - 20 PSI). Observe the gauge reading for approximately 2 minutes. Pressure should not drop during this time. If the pressure drops within this time, inspect for leaks and repair as necessary.
7. If no leaks are found and the pressure drops, the leak may be internal to the engine. Inspect the coolant for engine oil and the engine oil for coolant. REFER to: appropriate Engine article.
8. If the pressure does not drop remove the cooling system Pressure Tester and adaptor from degas bottle.
9. Install the degas bottle cap until it contacts the hard stop.
Thermostat
