Cooling System Draining And Vacuum Filling

Engine Cooling - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 5,861HTML edition
← Chapter contentsManual collection

NOTE: Less than 80% of coolant capacity can be recovered with the engine in the vehicle. Dirty, rusty or contaminated coolant requires replacement.

1.

Cooling System Draining And Vacuum Filling — original illustration 1, reference 5861Original colors & callouts · Select to enlarge
Cooling System Draining And Vacuum Filling — original illustration 2, reference 5861Original colors & callouts · Select to enlarge

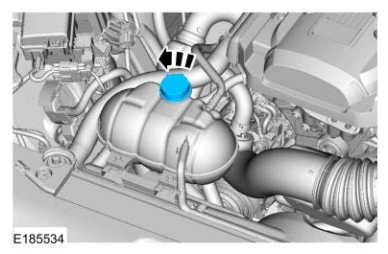

WARNING: When releasing the cooling system pressure, cover the coolant expansion tank cap with a thick cloth.

Remove the pressure relief cap.

Cooling System Draining And Vacuum Filling — original illustration 3, reference 5861Original colors & callouts · Select to enlarge

2. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

NOTE: If equipped.

3. Remove the underbody shield.
