Cooling System Draining And Vacuum Filling — Engine Cooling - 2.3L EcoBoost (231kW & 314PS) · Reference 5864

Measure the coolant concentration in the vehicle.

Use Special Service Tool: ROB75240 Coolant/Battery Refractometer (Fahrenheit).

Determine the concentration desired based on the vehicle duty cycle of extreme hot or cold operating conditions.

Add, top-off or adjust the coolant as follows:

For concentrations measured 48/52 to 50/50 (freeze protection -34°C to -37°C [-30°F to -34°F]) use Motorcraft® Orange Antifreeze/Coolant Prediluted to maintain a coolant concentration in this same range.

Material

: Motorcraft® Orange Antifreeze/Coolant Prediluted (U.S.) / VC-3DIL-B (U.S.) (WSS-M97B44-D2)

For all other concentrations, use Motorcraft® Orange Antifreeze/Coolant Concentrated and/or distilled water to get to the desired concentration.

Material

: Motorcraft® Orange Antifreeze/Coolant Concentrated (U.S.) / VC-3-B (U.S.) (WSS-M97B44-D)

When refilling the engine coolant after a flush procedure, use a mixture of Motorcraft® Orange Antifreeze/Coolant Concentrated and distilled water to get to the desired concentration.

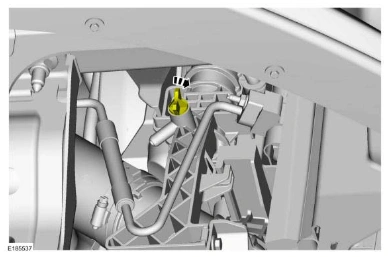

2. Close the radiator drain valve.

Cooling System Draining And Vacuum Filling — original illustration 1, reference 5864Original colors & callouts · Select to enlarge

NOTE: If equipped.

3. Install the underbody shield.
