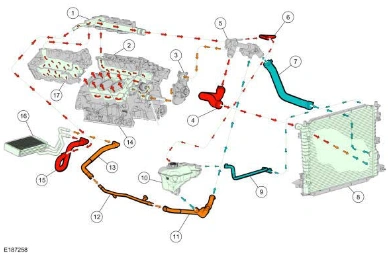

Item | Description |
1 | Intake manifold |
2 | LH cylinder head |
3 | Coolant pump |
4 | Upper radiator hose |
5 | Thermostat housing |
6 | Thermostat housing-to-degas bottle hose |
7 | Lower radiator hose |
8 | Radiator |
9 | Radiator-to-degas bottle hose |
10 | Degas bottle |
11 | Coolant return hose |
12 | Heater outlet tube |
13 | Heater outlet hose |
14 | Cylinder block |
15 | Heater inlet hose |
16 | Heater core |
17 | RH cylinder head |
DESCRIPTION AND OPERATION > ENGINE COOLING - SYSTEM OPERATION AND
COMPONENT DESCRIPTION > SYSTEM OPERATION
Engine coolant flows primarily from the engine to the radiator circuit and back to the coolant pump. Coolant is sent from the coolant pump through the engine block and cylinder heads. A separate circuit from the engine also feeds the heater core with coolant. The coolant pump, operated by engine rotation through the accessory drive belt, circulates the coolant. The coolant thermostat is a control valve actuated by coolant temperature. When the thermostat is closed, coolant flow bypasses the radiator circuit and returns to the coolant pump. When the thermostat is opened, coolant flows through the radiator circuit to transfer engine-generated heat to the outside air.
