Cooling System Draining And Vacuum Filling

Engine Cooling - 3.7L Duratec (227kW 301PS)

Source configuration appliesSource reference 5,917HTML edition
← Chapter contentsManual collection
Cooling System Draining And Vacuum Filling — original illustration 1, reference 5917Original colors & callouts · Select to enlarge

WARNING: Be prepared to collect escaping fluid.

Use a hose to drain the coolant.

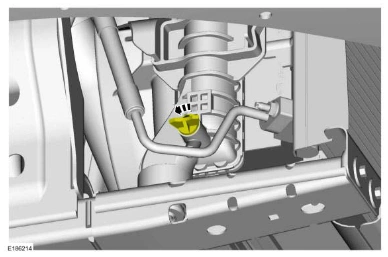

Open the radiator drain valve and drain the engine coolant in a suitable, clean container.

Use the General Equipment: Fluid Container

Cooling System Draining And Vacuum Filling — original illustration 2, reference 5917Original colors & callouts · Select to enlarge

Filling

Filling and Bleeding with a Vacuum Cooling System Filler

1.

NOTE: The cooling system is filled with Motorcraft® Orange Antifreeze/Coolant. Do not mix coolant types. Mixing coolant types degrades the corrosion protection of the coolant. Failure to follow these instructions may damage the engine or cooling system.

NOTE: Engine coolant provides boil protection, corrosion protection, freeze protection, and cooling efficiency to the engine and cooling components. In order to obtain these protections, maintain the engine coolant at the correct concentration and fluid level in the degas bottle.

NOTE: Add Motorcraft® Orange Antifreeze/Coolant or equivalent.

NOTE: Do not add or mix with any other type of engine coolant. Mixing coolants may degrade the coolant's corrosion protection.
