Cooling System Draining And Vacuum Filling — Engine Cooling - 3.7L Duratec (227kW 301PS) · Reference 5919

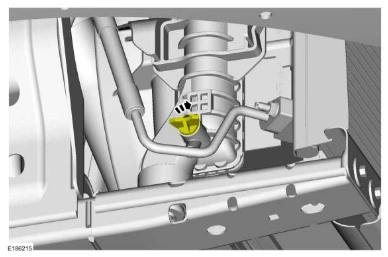

Cooling System Draining And Vacuum Filling — original illustration 1, reference 5919Original colors & callouts · Select to enlarge

NOTE: If equipped.

3. Install the underbody shield.

Cooling System Draining And Vacuum Filling — original illustration 2, reference 5919Original colors & callouts · Select to enlarge

NOTE: If equipped.

4. Install the underbody shield.

Cooling System Draining And Vacuum Filling — original illustration 3, reference 5919Original colors & callouts · Select to enlarge

5. Install the vacuum cooling system filler and follow the manufacturer's instructions to fill and bleed the system.

Use the General Equipment: Cooling System Vacuum Tester and Refiller
