Cooling System Draining And Vacuum Filling — Engine Cooling - 3.7L Duratec (227kW 301PS) · Reference 5922

and/or distilled water to get to the desired concentration.

Material

: Motorcraft® Orange Antifreeze/Coolant Concentrated (U.S.) / VC-3-B (U.S.) (WSS-M97B44-D)

When refilling the engine coolant after a flush procedure, use a mixture of Motorcraft® Orange Antifreeze/Coolant Concentrated and distilled water to get to the desired concentration.

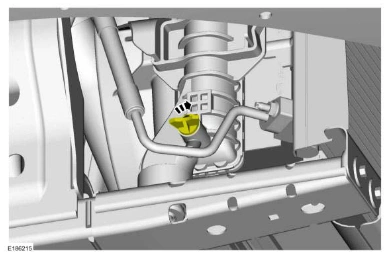

11. Close the radiator drain valve.

Cooling System Draining And Vacuum Filling — original illustration 1, reference 5922Original colors & callouts · Select to enlarge

NOTE: If equipped.

12. Install the underbody shield.

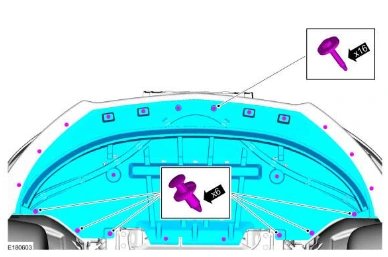

Cooling System Draining And Vacuum Filling — original illustration 2, reference 5922Original colors & callouts · Select to enlarge

NOTE: If equipped.

13. Install the underbody shield.
