Quick Release Coupling

Fuel System - General Information - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 6,117HTML edition
← Chapter contentsManual collection

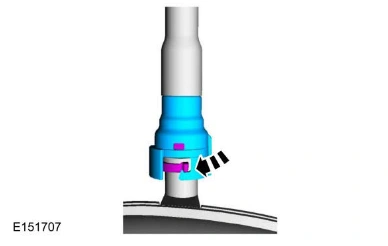

Quick Release Coupling — original illustration 1, reference 6117Original colors & callouts · Select to enlarge

Connect

1.

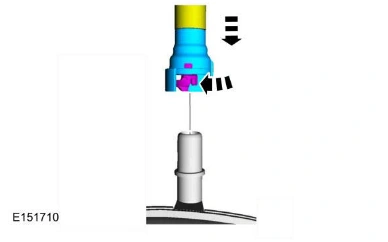

Quick Release Coupling — original illustration 2, reference 6117Original colors & callouts · Select to enlarge

2.

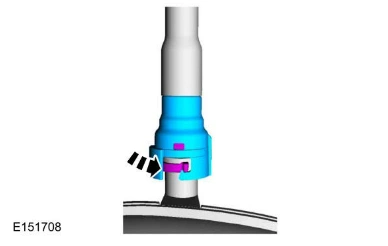

Quick Release Coupling — original illustration 3, reference 6117Original colors & callouts · Select to enlarge

3. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.

NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine
