Quick Release Coupling

Fuel System - General Information - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 6,118HTML edition
← Chapter contentsManual collection

clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.

NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.

NOTE: Type 4

1. If servicing a liquid fuel tube quick connect coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release .

2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

3.

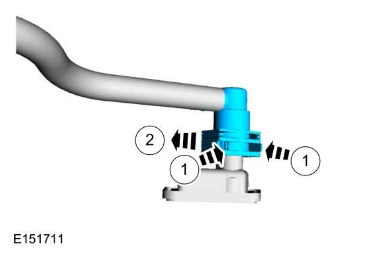

Quick Release Coupling — original illustration 1, reference 6118Original colors & callouts · Select to enlarge

4.

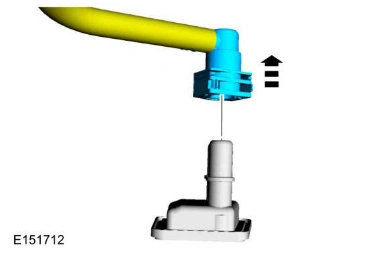

Quick Release Coupling — original illustration 2, reference 6118Original colors & callouts · Select to enlarge

Connect

1.

Ford_Mustang_all_2015-2017.pdf · source reference 6118

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
