Spring Lock Couplings — Fuel System - General Information - 2.3L EcoBoost (231kW & 314PS) · Reference 6122

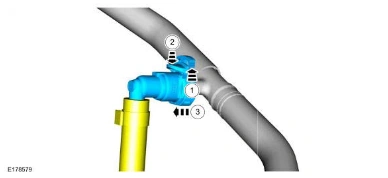

Spring Lock Couplings — original illustration 1, reference 6122Original colors & callouts · Select to enlarge

Connect

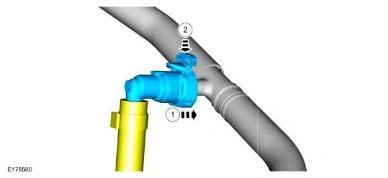

1. Push the quick release coupling onto the tube.

NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

2. Lock the secondary locking tab.

Spring Lock Couplings — original illustration 2, reference 6122Original colors & callouts · Select to enlarge

2. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .

GENERAL PROCEDURES > SPRING LOCK COUPLINGS

Special Tool(s) / General Equipment

Spring Lock Couplings — original illustration 3, reference 6122Original colors & callouts · Select to enlarge

310-S039 (T90T-9550-S) Disconnect Tool, Spring Lock Coupling TKIT-1990-LMH

Disconnect

NOTE: When reusing liquid or vapor tube connectors, make sure to use compressed air
