Spring Lock Couplings — Fuel System - General Information - 2.3L EcoBoost (231kW & 314PS) · Reference 6125

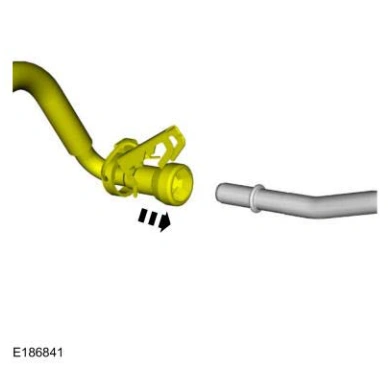

Spring Lock Couplings — original illustration 1, reference 6125Original colors & callouts · Select to enlarge

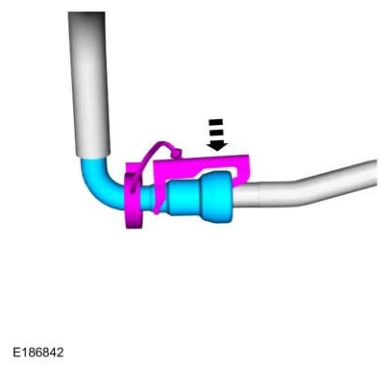

2. If equipped, install the fuel tube safety clip.

Spring Lock Couplings — original illustration 2, reference 6125Original colors & callouts · Select to enlarge

3. Pull on the coupling to make sure it is fully engaged.

4. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
