Starter Motor — Removal

Starting System - 2.3L EcoBoost (231kW &314PS)

Source configuration appliesSource reference 6,328HTML edition
← Chapter contentsManual collection

Disconnect the wire harness retainers from the starter motor mounting studbolts and position the wire harness aside.

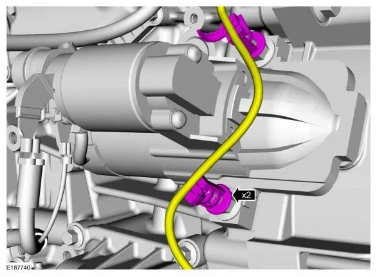

Starter Motor — original illustration 1, reference 6328Original colors & callouts · Select to enlarge

4. Remove the starter motor mounting studbolts and then position starter motor aside.

Torque

: 35 lb.ft (47.5 Nm)

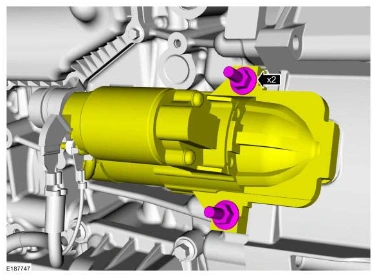

Starter Motor — original illustration 2, reference 6328Original colors & callouts · Select to enlarge

5. Open the starter motor solenoid battery cable cover.

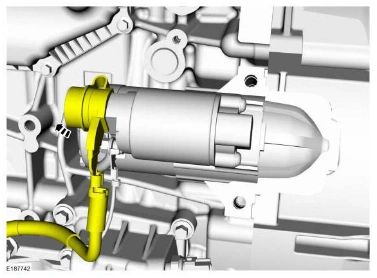

Starter Motor — original illustration 3, reference 6328Original colors & callouts · Select to enlarge

6.

1.
