Starter Motor — Installation — Starting System - 2.3L EcoBoost (231kW &314PS) · Reference 6329

Remove the starter motor solenoid battery cable nut and then disconnect the starter motor solenoid battery cable.

Torque

: 106 lb.in (12 Nm)

2. Remove the starter motor solenoid wire nut and then disconnect the starter solenoid wire.

Torque

: 53 lb.in (6 Nm)

3. Remove the starter motor.

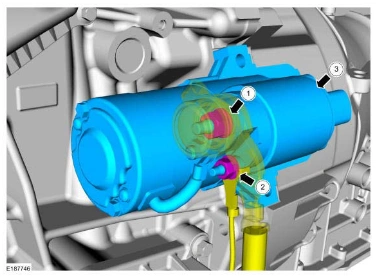

Starter Motor — original illustration 1, reference 6329Original colors & callouts · Select to enlarge

7. Inspect the starter motor drive gear and flywheel ring gear. Refer to: Starter Motor Drive Gear and Flywheel Ring Gear Inspection .

REMOVAL AND INSTALLATION > STARTER MOTOR > INSTALLATION

1. To install, reverse the removal procedure.

Ford_Mustang_all_2015-2017.pdf · source reference 6329
