TPMS Sensor Types — Banded Sensor

Maintenance Reminder Light (Reset Procedures)

General Ford referenceSource reference 7,850HTML edition
← Chapter contentsManual collection

Check the named application. This is a general Ford appendix and may describe vehicles other than Mustang. Model and year tables take precedence over the collection filename. Any emissions standards are historical source material.

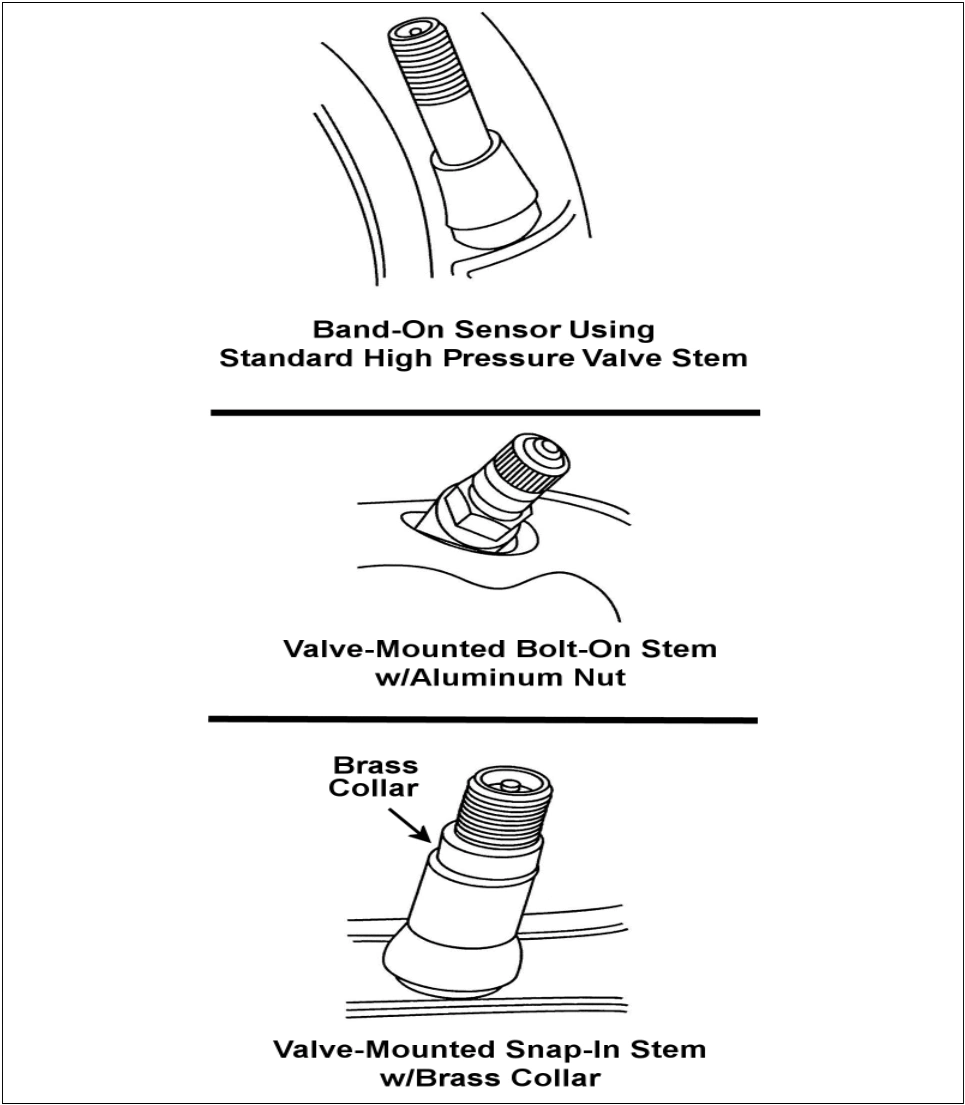

Fig 1: Identifying Valve Stems Used With Ford TPMS Sensors

TPMS Sensor Types — original illustration 1, reference 7850Original colors & callouts · Select to enlarge

TIRE PRESSURE MONITOR SYSTEM REMINDER > TPMS SENSOR TYPES > BANDED

SENSOR

The banded (or band-on) TPMS sensor assembly consists of:

A metal band around the center of the wheel
