Selector Lever Position | PCM Commanded Gear | Shift Solenoid | TCC NL | |
SSA NL (1, 2, 3, 4) | SSB NH (3, 5, R) | SSC NL (CB 2, 6) | SSD NH (CB L/R 4, 5, 6) | SSE NC |
D and 2 | 2 | ON | ON | ON |
ON OFF OFF
CB = Clutch brake
NC = Normally closed
NH = Normally high
NL = Normally low

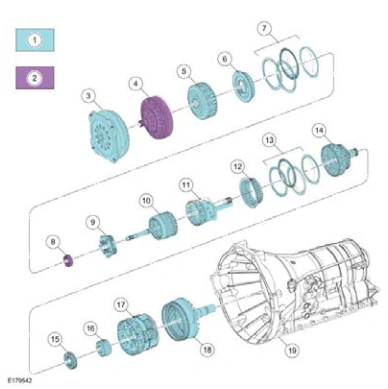

3rd Gear
Item | Description |
1 | Driven Components |
2 | Held Components |
3 | Torque Converter |
4 | Pump Assembly |
5 | Forward Clutch Cylinder and Hub Assembly |
6 | Forward Clutch Balance Piston Assembly |
7 | Forward Clutch (A) Assembly |
8 | Front Planetary Sun Gear (No. 1) |
9 | Front Planetary Carrier Assembly |
10 | Front Planetary Ring Gear Assembly (Input Shaft) |
