A (1, 2, 3, 4) | B (3, 5, R) | C (2, 6) | D (1, R) | E (4, 5, 6) | ||
|---|---|---|---|---|---|---|
2nd Gear D and Manual 2 | D | - | H | - | - | O/R |
Planetary Components | Front planetary carrier- to-No. 3 sun gear | Front carrier- to-No. 2 sun gear | No. 2 sun gear | Rear planetary carrier | Input shaft- to-rear planetary carrier | Rear planetary carrier |
D = Drive Clutch * H = Hold Clutch O/R = Overrunning

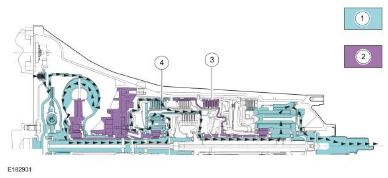

2nd Gear Power Flow
Item | Description |
1 | Driven Components |
2 | Held Components |
3 | Intermediate Clutch (C) |
4 | Forward Clutch (A) |
Hydraulic Operation
Line Pressure Hydraulic Circuits:
The position of the main regulator valve controls line pressure. The position of the main regulator valve is dependent on the pressure applied to it by the LPC solenoid through the VFS5 circuit.
The main regulator valve varies pressure in the PUMP circuit by controlling hydraulic flow from the SCHG circuit into the pump suction circuit.
Line pressure is supplied to the:
Manual valve.
Lubrication control valve.
Converter release regulator valve.
Bypass clutch control regulator valve.
Solenoid pressure regulator valve.
