Transmission Description - System Operation And Component Description — Automatic Transmission - 6-Speed Automatic Transmission - 6R80 · Reference 8699

Line pressure is supplied by the manual valve to the clutch B latch and regulator valves.

Regulated line pressure from the clutch B regulator valve is supplied to the direct clutch (B) to apply the clutch.

1st Gear Solenoid Operation Chart

Solenoid operation:

Selector Lever Position	PCM Commanded Gear	SSA NL (1, 2, 3, 4)	SSB NH (3, 5, R)	SSC NL (CB 2, 6)	SSD NH (CB L/R 4, 5, 6)	SSE NC	TCC NL
D	1	On	On	Off	Off*	On	Off
1	1	On	On	Off	Off	On	Off

CB = Clutch brake, NC = Normally closed, NH = Normally high, NL = Normally low * Solenoid is ON when vehicle speed is above 4 kph (3mph).

2nd Gear

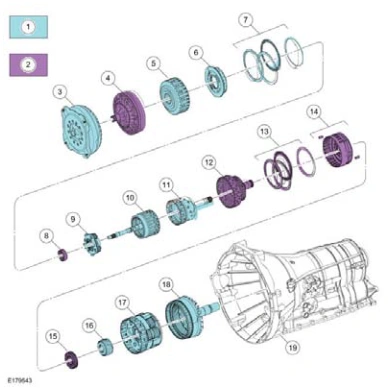

Transmission Description - Overview — original illustration 1, reference 8699Original colors & callouts · Select to enlarge

Item	Description
1	Driven Components
2	Held Components
3	Torque Converter
4	Pump Assembly
5	Forward Clutch Cylinder and Hub Assembly
6	Forward Clutch Balance Piston Assembly
7	Forward Clutch (A) Assembly
8	Front Planetary Sun Gear (No. 1)
9	Front Planetary Carrier Assembly
