Transmission Description - System Operation And Component Description

Automatic Transmission - 6-Speed Automatic Transmission - 6R80

Source configuration appliesSource reference 8,711HTML edition

Regulated line pressure from the clutch E regulator valve is supplied to the overdrive clutch (E) to apply the clutch.

Electrical Operation

Solenoid operation:

4th Gear Solenoid Operation Chart

Selector Lever Position	PCM Commanded Gear		TCC NL
SSA NL (1, 2, 3, 4)	SSB NH (3, 5, R)	SSC NL (CB 2, 6)	SSD NH (CB L/R 4, 5, 6)	SSE NC
D	4	On	On	Off

Off Off On/Off

CB = Clutch brake

NC = Normally closed

NH = Normally high

NL = Normally low

5th Gear

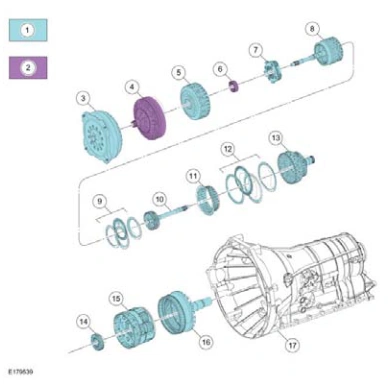

Transmission Description - Overview — original illustration 1, reference 8711Original colors & callouts · Select to enlarge

Item	Description
1	Driven Components
2	Held Components
3	Torque Converter
4	Pump Assembly
5	Forward Clutch Cylinder and Hub Assembly
