DIAGNOSIS AND TESTING > OVERDRIVE CLUTCH ASSEMBLY

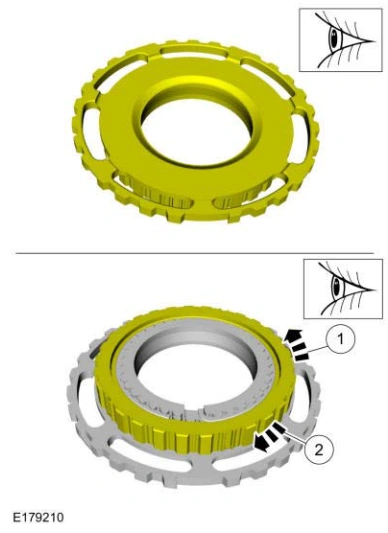

Overdrive Clutch
For overdrive clutch operation, REFER to: Overdrive Clutch Assembly .
Diagnostics in this article assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods .
Condition Possible Sources Action SSD is mechanically stuck OFF, INSTALL a new solenoid. REFER SSE is mechanically stuck ON to: Shift Solenoids (SS) . DISASSEMBLE, CLEAN and INSPECT the overdrive clutch regulator valve. If bore or valve is Clutch E regulator valve is stuck damaged, INSTALL a new main OFF control. REFER to: Main Control Valve Body . REFER to: Symbols Overdrive clutch does not apply Glossary . DISASSEMBLE and INSPECT the main control valve body and CLE, Drive, VFS4, SS1, CLECF, separator plate passages for CLEC hydraulic circuits debris/blockage. CLEAN as blocked/leaking necessary. REFER to: Main Control Valve Body . REFER to: Symbols Glossary .
Original table alignment retained · Scroll horizontally if needed
