Service Manual: TRANSMISSION COOLING

DESCRIPTION AND OPERATION > TRANSMISSION COOLING - COMPONENT

LOCATION

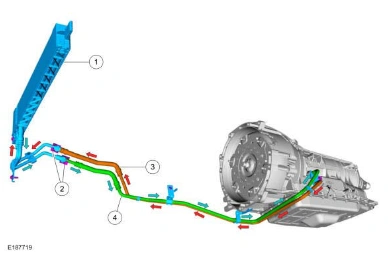

2.3L Engine

Transmission Cooling - Component Location — original illustration 1, reference 9368Original colors & callouts · Select to enlarge

Item

Description

1

Transmission fluid cooler and hose assembly

2

Transmission fluid cooler tube fitting latches

3

Transmission fluid cooler inlet tube

4

Transmission fluid cooler outlet tube

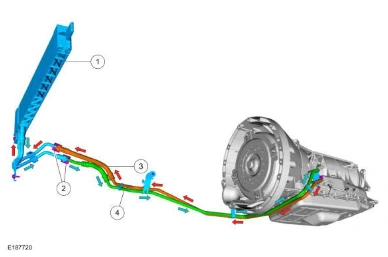

3.7L Engine

Transmission Cooling - Component Location — original illustration 2, reference 9368Original colors & callouts · Select to enlarge

Item

Description

1

Transmission fluid cooler and hose assembly

2

Transmission fluid cooler tube fitting latches

3

Transmission fluid cooler inlet tube

4

Transmission fluid cooler outlet tube

5.0L Engine
