Positive Lead | Measurement / Action | Negative Lead |
|---|---|---|
C541, pin 6, Component Side | C541, pin 3, Component Side |

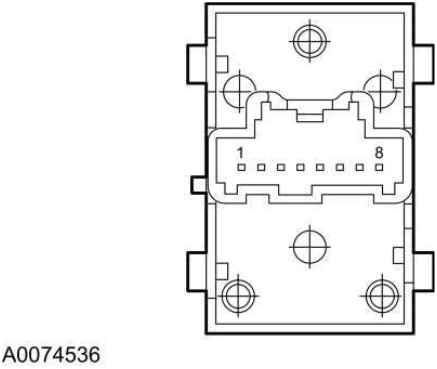

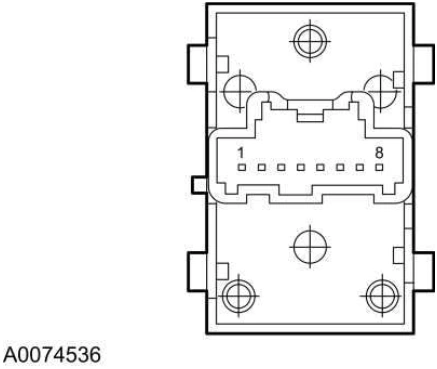

While pressing and releasing the indicated memory recall button 3, measure the component side resistance of the driver door lock control switch using the following table:
Positive Lead | Measurement / Action | Negative Lead |
|---|---|---|
C541, pin 7, Component Side | C541, pin 3, Component Side |
Are the resistances less than 20 ohms with the switch buttons pressed and greater than 10,000 ohms with the switch buttons released?
Yes | GO to D5 |
|---|---|
No | INSTALL a new door lock control switch. REFER to: Door Lock Control Switch (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation). |
D5 CHECK THE MEMORY SET SWITCH GROUND CIRCUIT FOR AN OPEN
Ignition OFF. Measure:
Click to display connectors
Positive Lead | Measurement / Action | Negative Lead |
|---|---|---|
C541-3 | Ground |
Is the resistance less than 3 ohms?
Yes | GO to D6 |
|---|---|
No | REPAIR the circuit. |
