AE1 CHECK THE BLOWER MOTOR CIRCUITS FOR A SHORT TO VOLTAGE

REFER to: Supplemental Restraint System (SRS) Depowering (501-20B Supplemental Restraint System, General Procedures). Disconnect: Passenger Side Airbag In-line C219. Disconnect: SCME C3265C. Disconnect: Passenger Seat Cushion Blower Motor C3040. Disconnect: Passenger Seat Backrest Blower Motor C3039. Ignition ON. Measure:

Click to display connectors

Positive Lead

Measurement / Action

Negative Lead

C3265C-8

Ground

C3265C-7

Ground

Is any voltage present?

Yes

REPAIR the circuit in question. GO to AE5

No

GO to AE2

AE2 CHECK THE BLOWER MOTOR CIRCUITS FOR AN OPEN

Ignition OFF. Measure:

Click to display connectors

Positive Lead

Measurement / Action

Negative Lead

C3265C-8

C3040-3

C3265C-7

C3040-4

Are the resistances less than 3 ohms?

Yes

GO to AE3

No

REPAIR the circuit in question. GO to AE5

AE3 CHECK THE RESISTANCE OF THE CUSHION AND BACKREST BLOWER MOTORS

NOTE: The ohmmeter must be connected with the positive lead to pin 3 and the negative lead to pin 4 when measuring. Ohmmeter leads incorrectly connected results in false readings and leads to incorrect identification of components that are not damaged. Measure the component side resistance between:

Positive Lead

Measurement /

Action

Negative Lead

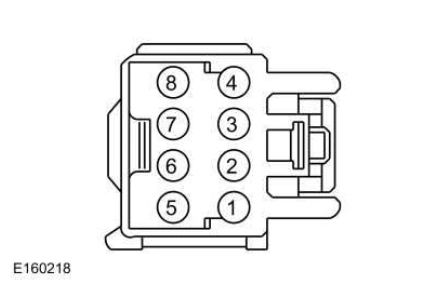

C3040-3, Component Side

Front Seats — original illustration 1, reference 1090Original colors & callouts · Select to enlarge

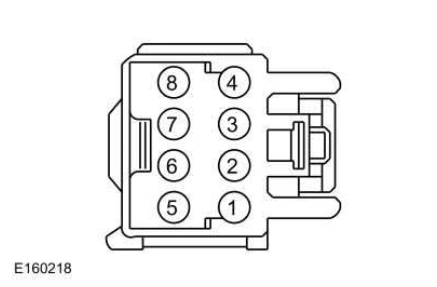

C3040-4, Component Side

Front Seats — original illustration 2, reference 1090Original colors & callouts · Select to enlarge

NOTE: The ohmmeter must be connected with the positive lead to pin 3 and the negative lead to pin 4 when measuring. Ohmmeter leads incorrectly connected results in false readings and leads to incorrect identification of components that are not damaged. Measure the component side resistance between:

Positive Lead

Measurement /

Action

Negative Lead
