No	GO to AD2

AD2 CHECK THE BLOWER MOTOR CIRCUITS FOR AN OPEN

Ignition OFF. Measure:

Click to display connectors

Positive Lead	Measurement / Action	Negative Lead
C3265C-16		C3035-3
C3265C-15		C3035-4

Are the resistances less than 3 ohms?

Yes	GO to AD3
No	REPAIR the circuit in question. GO to AD5

AD3 CHECK THE RESISTANCE OF THE CUSHION AND BACKREST BLOWER MOTORS

NOTE: The ohmmeter must be connected with the positive lead to pin 3 and the negative lead to pin 4 when measuring. Ohmmeter leads incorrectly connected results in false readings and leads to incorrect identification of components that are not damaged. Measure the component side resistance between:

Positive Lead	Measurement / Action	Negative Lead

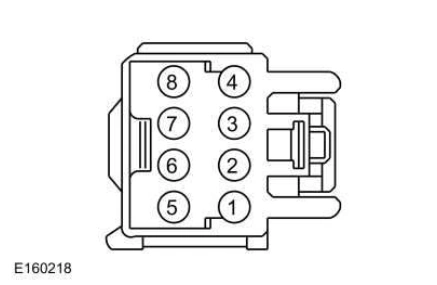

C3035-3, Component Side Front Seats — original illustration 1, reference 1088Original colors & callouts · Select to enlarge		C3035-4, Component Side Front Seats — original illustration 2, reference 1088Original colors & callouts · Select to enlarge

Positive Lead

Measurement /

Action

Negative Lead

C3035-3, Component Side

Front Seats — original illustration 1, reference 1088Original colors & callouts · Select to enlarge

C3035-4, Component Side

Front Seats — original illustration 2, reference 1088Original colors & callouts · Select to enlarge

Positive Lead	Measurement / Action	Negative Lead

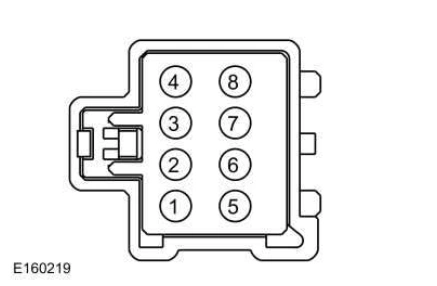

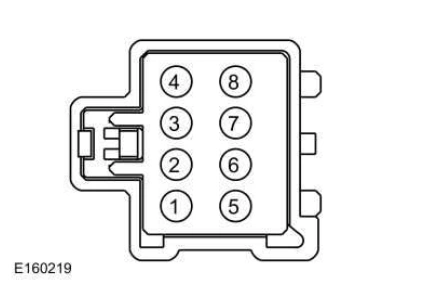

C3034-3, Component Side Front Seats — original illustration 3, reference 1088Original colors & callouts · Select to enlarge		C3034-4, Component Side Front Seats — original illustration 4, reference 1088Original colors & callouts · Select to enlarge

Positive Lead

Measurement /

Action

Negative Lead

C3034-3, Component Side

Front Seats — original illustration 3, reference 1088Original colors & callouts · Select to enlarge

C3034-4, Component Side

Front Seats — original illustration 4, reference 1088Original colors & callouts · Select to enlarge

Are the resistances between 4,000 and 10,000 ohms?

Yes	GO to AD4
