Ambient Temperature | Resistance |
|---|---|
0-10° C (32-50° F) | 2,782-1,663 ohms |
10-20° C (50-68° F) | 1,837-1,140 ohms |
20-30° C (68-86° F) | 1,260-806 ohms |
30-40° C (86-104° F) | 893-570 ohms |
40-50° C (104-122° F) | 630-428 ohms |
Is the resistance within the limits indicated?
Yes | GO to AC35 |
|---|---|
No | GO to AC34 |
AC34 CHECK THE BLOWER MOTOR THERMISTOR RESISTANCE

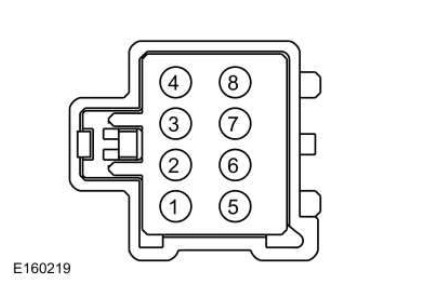

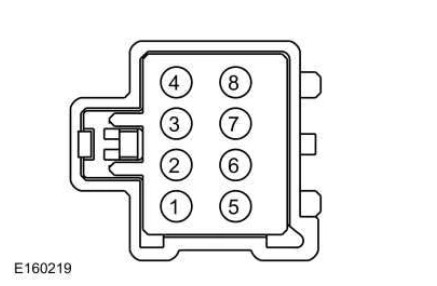

Disconnect: Passenger Seat Backrest Blower Motor C3039. Measure the component side resistance between:
Positive Lead | Measurement / Action | Negative Lead |
|---|---|---|
C3039-5, Component Side | C3039-8, Component Side |
Compare the measured resistance value with the following table:
Ambient Temperature | Resistance |
|---|---|
0-10° C (32-50° F) | 2,782-1,663 ohms |
10-20° C (50-68° F) | 1,837-1,140 ohms |
20-30° C (68-86° F) | 1,260-806 ohms |
30-40° C (86-104° F) | 893-570 ohms |
40-50° C (104-122° F) | 630-428 ohms |
Is the resistance within the limits indicated?
Yes | REPAIR the circuit(s) in question. GO to AC36 |
|---|---|
No | INSTALL a new backrest blower motor. REFER to: Front Seat Backrest Blower Motor (501-10 Front Seats) . GO to AC36 |
AC35 CHECK THE SCME (FRONT SEAT CLIMATE CONTROL MODULE) OPERATION
Ignition OFF. Disconnect and inspect all of the SCME connectors. Repair:
corrosion (install new connector or terminals - clean module pins) damaged or bent pins - install new terminals/pins as necessary pushed-out pins - install new pins as necessary
Reconnect the SCME connectors. Make sure they seat and latch correctly.
NOTE: Do not reconnect Passenger Side Airbag In-line C219 at this time. Reconnect all previously disconnected connectors. Ignition ON. Operate the system and determine if the concern is still present.
