Positive Lead | Measurement / Action | Negative Lead |
|---|---|---|
C3040-1, Component Side | C3040-2, Component Side |
Is the resistance between 0.9 and 10 ohms?
Yes | REPAIR the circuit(s) in question. GO to AC36 |
|---|---|
No | INSTALL a new passenger seat cushion blower motor. REFER to: Front Seat Cushion Blower Motor (501-10A Front Seats, Removal and Installation). GO to AC36 |
AC25 CHECK BLOWER CIRCUIT AND SPEED CONTROL CIRCUIT FOR A SHORT TO VOLTAGE
Disconnect: SCME C3265C. Ignition ON. Measure:
Click to display connectors
Positive Lead | Measurement / Action | Negative Lead |
|---|---|---|
C3265C-8 | Ground | |
C3265C-4 | Ground |
Is any voltage present?
Yes | REPAIR the circuit in question. GO to AC36 |
|---|---|
No | GO to AC26 |
AC26 CHECK BLOWER AND SPEED CONTROL CIRCUITS FOR A SHORT TO GROUND
Ignition OFF. Measure:
Click to display connectors
Positive Lead | Measurement / Action | Negative Lead |
|---|---|---|
C3265C-8 | Ground | |
C3265C-4 | Ground |
Are the resistances greater than 10,000 ohms?
Yes | GO to AC27 |
|---|---|
No | REPAIR the circuit in question. GO to AC36 |
AC27 CHECK THE BLOWER AND WIRING RESISTANCE

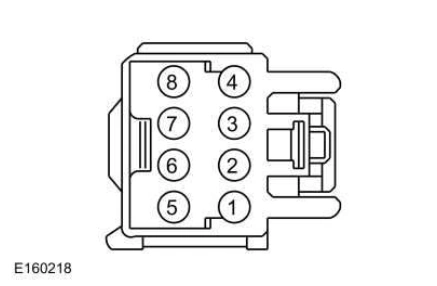

NOTE: The ohmmeter must be connected with the positive lead to pin 8 and the negative lead to pin 7 when measuring. Ohmmeter leads incorrectly connected will result in false readings and lead to incorrect identification of components that are not faulty. Measure:
Click to display connectors
Positive Lead | Measurement / Action | Negative Lead |
|---|---|---|
C3265C-8 | C3265C-7 |
