Is the resistance between 4,000 and 10,000 ohms?

Yes	GO to AC29
No	GO to AC28

AC28 CHECK THE BLOWER RESISTANCE

Disconnect: Passenger Seat Backrest Blower Motor C3039.

NOTE: The ohmmeter must be connected with the positive lead to pin 3 and the negative lead to pin 4 when measuring. Ohmmeter leads incorrectly connected results in false readings and leads to incorrect identification of components that are not damaged. Measure the component side resistance between:

Positive Lead	Measurement / Action	Negative Lead
C3039-3, Component Side Front Seats — original illustration 1, reference 1084Original colors & callouts · Select to enlarge		C3039-4, Component Side Front Seats — original illustration 2, reference 1084Original colors & callouts · Select to enlarge

Positive Lead

Measurement /

Action

Negative Lead

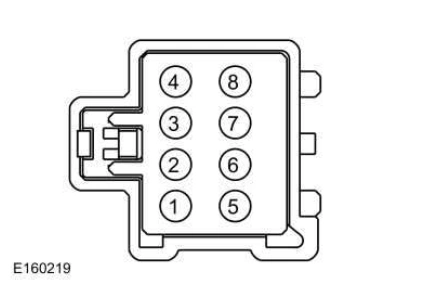

C3039-3, Component Side

Front Seats — original illustration 1, reference 1084Original colors & callouts · Select to enlarge

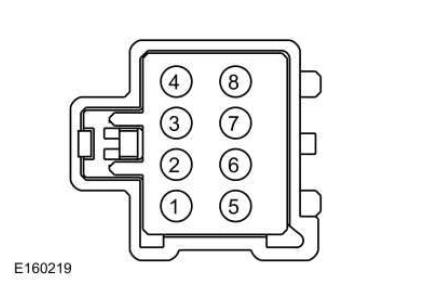

C3039-4, Component Side

Front Seats — original illustration 2, reference 1084Original colors & callouts · Select to enlarge

Is the resistance between 4,000 and 10,000 ohms?

Yes	REPAIR the circuit(s) in question. GO to AC36
No	INSTALL a new backrest blower motor. REFER to: Front Seat Backrest Blower Motor (501-10 Front Seats) . GO to AC36

AC29 CHECK THE BLOWER SPEED CONTROL AND CIRCUIT RESISTANCE

NOTE: The ohmmeter must be connected with the positive lead to pin 4 and the negative lead to pin 7 when measuring. Ohmmeter leads incorrectly connected results in false readings and leads to incorrect identification of components that are not damaged. Measure:

Click to display connectors

Positive Lead	Measurement / Action	Negative Lead
C3265C-4		C3265C-7

Is the resistance between 240K and 400K ohms?

Yes	GO to AC31
No	GO to AC30

AC30 CHECK THE BLOWER SPEED CONTROL RESISTANCE

Disconnect: Passenger Seat Backrest Blower Motor C3039.

NOTE: The ohmmeter must be connected with the positive lead to pin 7 and the negative lead to pin 4 when measuring. Ohmmeter leads incorrectly connected results in false readings and leads to incorrect identification of components that are not damaged. Measure the component side resistance between:

Positive Lead

Measurement /

Action

Negative Lead
