Rear Seat Backrest - Convertible — 2016 workshop reference 1183

501-10B Rear Seats 2016 Mustang

Removal and Installation Procedure revision date: 03/18/2015

Rear Seat Backrest - Convertible

Removal

1. Remove the rear seat cushion. Refer to: Rear Seat Cushion (501-10B Rear Seats, Removal and Installation).

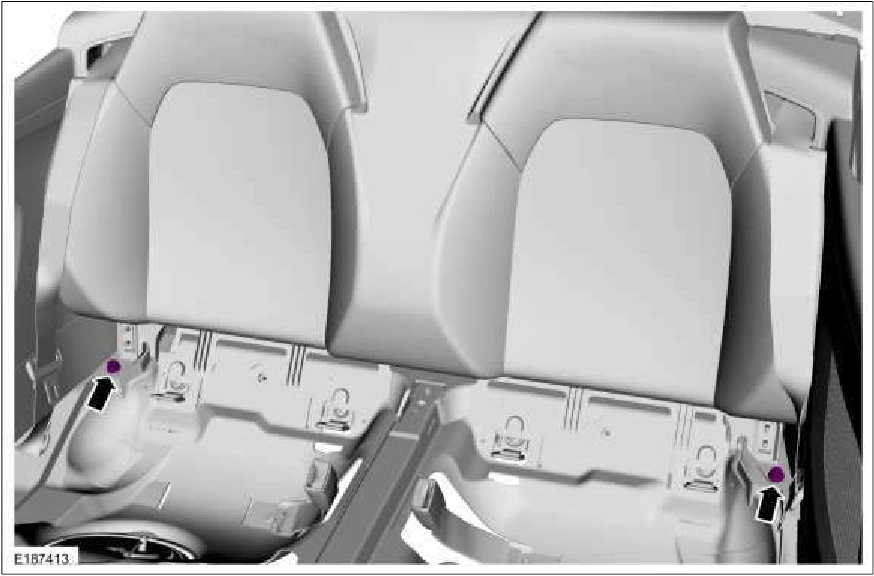

2. Release the fasteners attaching the seat backrest to the floor. Torque : 35 lb.ft (47.5 Nm)

Rear Seat Backrest - Convertible — original illustration 1, reference 1183Original colors & callouts · Select to enlarge

3. Release the backrest locking clips. Remove the backrest.
